Fiber Switches
These piezo-driven optical fiber switches offer a very low light loss and low power consumption, and are very fast. The small size of the switchbox and the easy control make these fiber optic switches ideally suited for use as a component of a spectrometer system or other metrology device.
No lenses or prisms are used in their design, so there are no wavelength dependent limitations.
These precision piezo-driven switches guarantee a light transmission of >80%, with a typical switching time of <1 ms. Models are available that offer up to 9 inputs/outputs. Humidity resistant models are also available. Users can save time and cost while guaranteeing the best light quality.

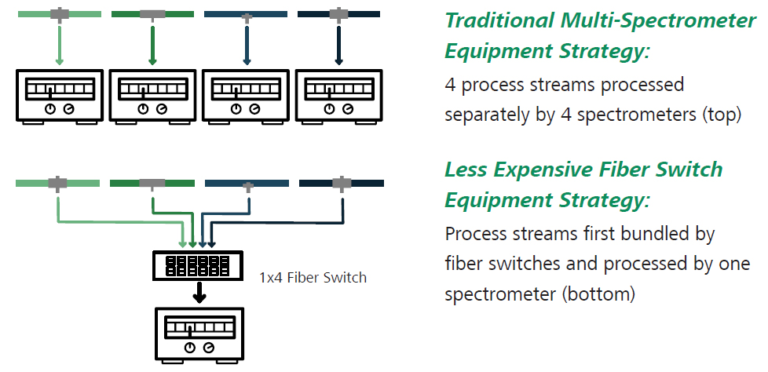

Reduce equipment costs by eliminating multiple spectrometers and adding a single fiber switch.

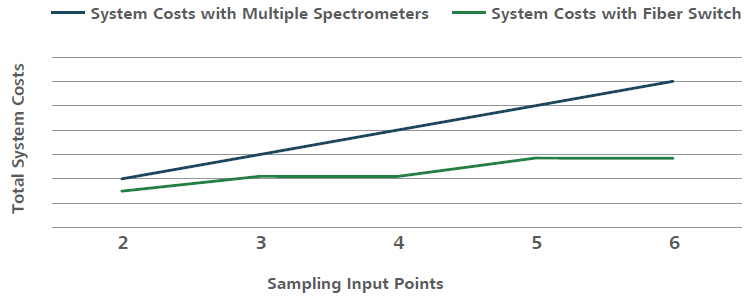

An optical fiber switch can receive up to nine input signals and send output to a single spectrometer. The cost of a single fiber switch is considerably less expensive than the cost of multiple spectrometers. This will reduce your start-up costs and increase your ROI.
Featured Models:
1 x 2, Small Fiber Switches
Features:
- For fiber core diameter sizes: 50 to 600 µm
- Fast switching time
- High optical isolation
- Low insertion loss
This small 2-channel (input or output) fiber switch is ideal for use with two inputs and outputting to a single source – such as using a single spectrometer. Other common uses include optical measurement systems, telecommunications and environmental trace analysis.
|
Sub-set of Models and Data
|
UNIT
|
Fiber Diameter 200 µm
|
Fiber Diameter 600 µm
|
|---|---|---|---|

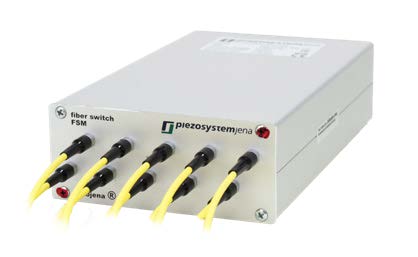

1 x 3 to 1 x 9, Medium Fiber Switches
Features:
- For fiber core diameter sizes: 50 & 200 µm
- Fast switching time
- High optical isolation
- Low insertion loss
This 3 to 9 channel fiber switch is ideal for use with up to 9 inputs and outputting to a single source – such as using a single spectrometer. Other common uses include optical measurement systems, telecommunications and environmental trace analysis.
|
Sub-set of Models and Data
|
UNIT
|
1 x 3, Fiber Diameter 200 µm
|
1 x 9, Fiber Diameter 600 µm
|
|---|---|---|---|

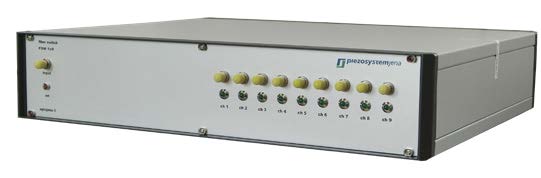

1 x 3 to 1 x 9, Large Fiber Switches
Features:
- For fiber core diameter sizes: 400 & 600 µm
- Fast switching time
- High optical isolation
- Low insertion loss
This 3 to 9 channel fiber switch is ideal for use with up to 9 sensor inputs and outputting to a single source – such as using a single spectrometer. Other common uses include optical measurement systems, telecommunications and environmental trace analysis.
|
Sub-set of Models and Data
|
UNIT
|
1 x 3, Fiber Diameter 400 µm
|
1 x 9, Fiber Diameter 600 µm
|
|---|---|---|---|
